Set Up the Statusline

Claude Code only for this settings-wired bar. Codex has no statusline surface and presents the shared .codearbiter/ state in its SessionStart briefing. Interactive Pi sessions install codeArbiter’s rich footer automatically and restore Pi’s native footer on shutdown or when the custom footer cannot initialize.

codeArbiter ships a token-aware statusline for Claude Code: a compact, full-width box that shows your session usage in every repo and, in an arbiter-enabled one, the live project state. It is dependency-free (native font glyphs only, no Nerd Font) and renders on every session once wired.

1 2 3 4 5 6 7 8 9

1. 1 folder
2. 2 git
3. 3 rate limits
4. 4 model
5. 5 arbiter
6. 6 tokens
7. 7 cost
8. 8 burn
9. 9 context

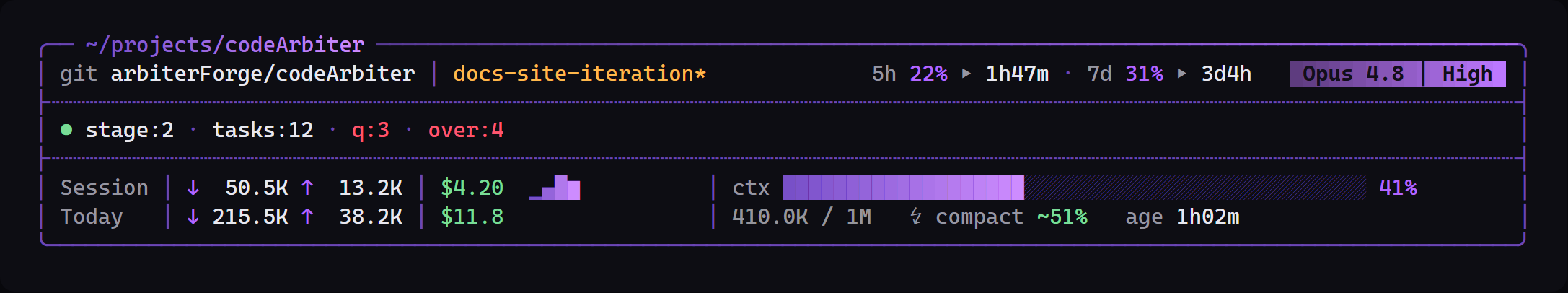

The real renderer capture, annotated in HTML so the image remains unchanged. Values are deterministic test data.

You will need: the plugin installed (see Install).

Wire It In

Run /ca:statusline once in any Claude Code session to wire the bar. The command writes an absolute statusLine.command entry in ~/.claude/settings.json, pointing at the renderer for your installed plugin version.

/ca:statusline

If a statusLine.command already exists in your settings, the current value is backed up before being replaced. Uninstalling restores the backed-up value; if there was none, the key is removed. The command also writes codeArbiter’s spinnerVerbs set and backs up any prior verbs, restored on uninstall.

To inspect the current state without modifying settings, run /ca:statusline status. Output shows whether settings.json is present, the renderer path (with a found/MISSING indicator), the active statusLine.command, and whether it belongs to codeArbiter.

Verify before customizing

Run /ca:statusline status, then open a fresh Claude Code session. Confirm that the reported codeArbiter-owned command resolves and a real render appears. The values belong to that session; a documentation screenshot is fixture data. Learn the segment meanings below before changing the palette. The product tour shows actual renderer fixtures.

Choose a Color Theme

The statusline defaults to its original violet palette. Set CODEARBITER_THEME in the environment that launches Claude Code to select violet, blue, green, amber, or mono. Names are case-insensitive. An unrecognized name falls back to violet, so a typo cannot break the renderer.

For a POSIX shell, set the value in the process that launches Claude Code:

CODEARBITER_THEME=blue claude

In PowerShell, set it for the current process before launch:

$env:CODEARBITER_THEME = 'blue'
claude

These examples affect that process and its children. They do not permanently rewrite your shell profile. Remove the process override to return to the default.

For a custom palette, set CODEARBITER_THEME=custom. The renderer reads ~/.codearbiter/statusline-theme.json unless CODEARBITER_THEME_FILE names another local file. Both ~ and environment variables in that path are expanded. The file is read-only: rendering does not write configuration or make network requests.

{
  "accent": {
    "deep": "#6c46b4",
    "mid": "#965ce6",
    "primary": "#b266ff",
    "bright": "#d08cff"
  },
  "text": {
    "muted": "#9696a2",
    "normal": "#e8e8f0",
    "on_accent": "#120e1a"
  },
  "semantic": {
    "ok": "#78dc96",
    "warn": "#ffb84c",
    "danger": "#ff566e"
  },
  "gradient": {
    "from": "#7850c8",
    "to": "#cd8cff"
  }
}

Every field is optional and omitted fields inherit from violet. Values must use six-digit #RRGGBB notation. Unknown keys and invalid color values are ignored. A missing, unreadable, oversized, malformed, or non-object file rejects the custom theme as a whole and safely renders with violet instead.

The standard NO_COLOR environment variable takes precedence over every built-in and custom theme. When it is present, the final statusline contains no ANSI color sequences while retaining the same text, glyphs, spacing, and clipping.

Built-in Theme Captures

Compare the actual renderer output for violet, blue, green, amber and mono. The gallery uses identical deterministic fixture data in every theme. It is not a live session or billing report. NO_COLOR still takes precedence over a theme choice.

What the Bar Shows

The bar has two tiers of segments.

Usage Segments

These render in every Claude Code session, regardless of whether the open repo is arbiter-enabled.

Key	Segment	Shows
Key 1	Segment folder	Shows Active working directory, abbreviated to key path components
Key 2	Segment git	Shows Repo owner/name and current branch, with a dirty-state marker when uncommitted changes are present
Key 4	Segment model	Shows Model display name and effort level as a colored pill
Key 3	Segment rate limits	Shows 5-hour and 7-day API usage percentages, with reset countdowns when the host supplies them
Key 9	Segment context	Shows Context window usage bar, used percentage, and remaining headroom before auto-compaction
Key 6	Segment tokens	Shows Session and daily in/out token counts from the session transcript and its subagent transcripts, each request counted once
Key 7	Segment cost	Shows Session and daily API-equivalent cost reconstructed from those transcripts at list API rates, with a provenance label (see Reading the cost figure)
Key 8	Segment burn	Shows Per-request token sparkline for the parent session’s own calls; subagent usage counts toward totals, not burn
Key not shown	Segment subagents	Shows Recent tasks with liveness, selected model, input/output tokens, and age; mixed or missing model metadata is explicit

Reading the Cost Figure

The cost is an estimate of what the same tokens would cost at pay-as-you-go list API rates. It is not a bill, and it is not what a subscription charges. codeArbiter prices every request it finds in the parent transcript and every subagent transcript under it, using rates shipped with the plugin. Each request is counted once, even when streaming snapshots or forked subagents repeat it. The label tells you how far to trust the number:

Label	Meaning
Label api≈$N	Meaning Complete: every observed request was priced
Label api≥$N	Meaning A lower bound. Some usage could not be priced (an unknown model, tool, or price modifier), or a large transcript is still being read. The figure only rises as coverage improves
Label api≈?	Meaning No dollar figure codeArbiter can defend: nothing has been reconstructed yet (shown grey), or usage exists but none of it could be priced (shown amber)
Label host≈$N	Meaning Session only, when reconstruction is unavailable: Claude Code’s own session estimate. It is never mixed with api figures and never used for Today
Label trailing *	Meaning Stale: that redraw could not take the ledger lock, so it shows the last saved totals

In a narrow box the words drop and the symbol stays (≈$N, ≥$N, h≈$N).

The statusline updates only when Claude Code redraws it, and codeArbiter adds no timer of its own. Each redraw reads a bounded amount of new transcript. Work that does not fit is never lost: it resumes on the next redraw, and the figure reads api≥ until it catches up. Per-session accounting state lives under ~/.codearbiter/ledger.json.sessions/.

Arbiter Segments

These render only when the open repo carries arbiter: enabled in .codearbiter/CONTEXT.md. The activation check uses the same frontmatter parser the enforcement hooks use, so the bar and the gates always agree on whether a repo is active. See Enforcement & Security for the activation contract.

Key	Segment	Shows
Key 5	Segment stage	Shows Current project stage from the stage key in CONTEXT.md frontmatter
Key 5	Segment tasks	Shows In-flight task count from open-tasks.md; done tasks are excluded
Key 5	Segment questions	Shows Count of open CONFIRM-NN questions in open-questions.md
Key 5	Segment overrides	Shows Override entries logged since the last /ca:checkpoint

A non-zero questions or overrides count renders in red. A non-zero tasks count renders in white. A green dot before the arbiter row confirms the repo is active.

Remove the Statusline

/ca:statusline uninstall

If a prior statusLine.command was backed up at install time, it is restored. Spinner verbs are restored the same way.

SessionStart Self-Heal

Every session, session-start.py runs the refresh action automatically. If the wired path points at a previous plugin version, for example after a plugin update moves the renderer, the path is rewritten to the current absolute location. The write happens only when the path actually changed; a steady-state session never modifies settings.json.

If the renderer file is absent mid-update, the self-heal skips the write. A later session where the file is present corrects the path.

Unparseable Settings File

/ca:statusline refuses to touch ~/.claude/settings.json when the file is not valid JSON:

REFUSING TO WRITE: ~/.claude/settings.json is not valid JSON (...).
Fix it by hand, then re-run - I will not clobber an unparseable settings file.

Open the file in a text editor, restore valid JSON, then re-run /ca:statusline.

---

For the statusline.py renderer and wire-statusline.py script reference, see Hooks reference: non-event scripts. For Pi’s automatic rich-footer behavior and its fail-soft native fallback, see Pi host support.
